ESPBoost
A Shield to Boost Up Lolin32 Lite and derivatives!
ESPBoost
Introduction

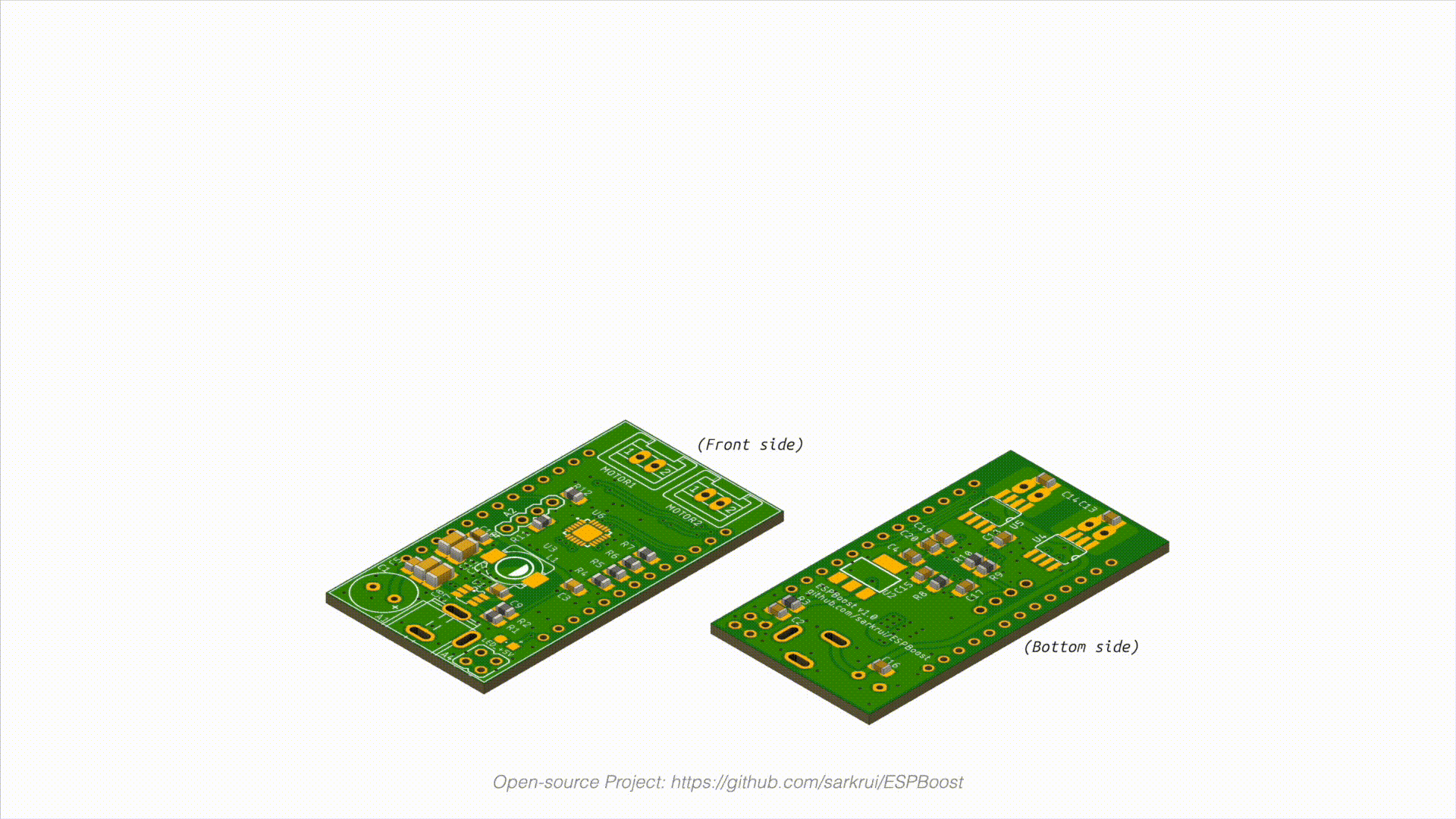

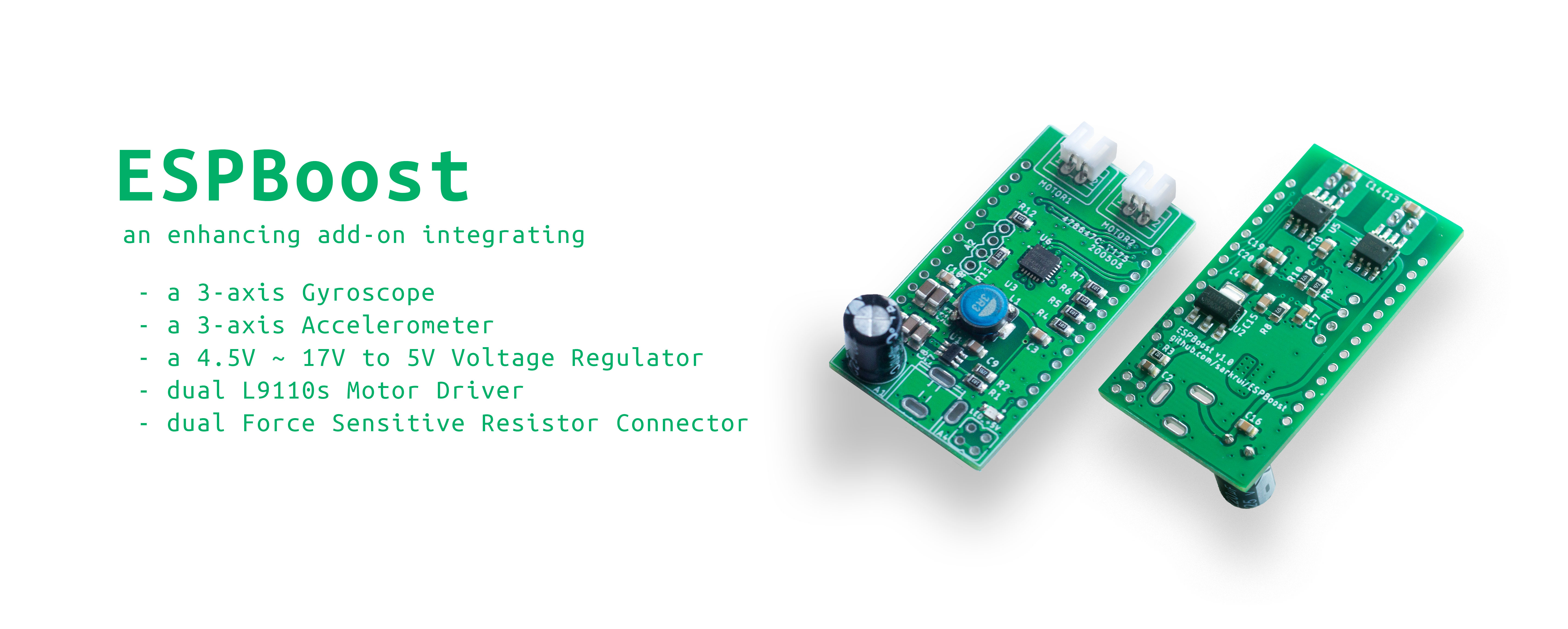

The ESPBoost is an ESP32 shield combines a MPU6050 (3-axis gyro/accelerometer, via SDA/SCL GPIO), 2 H-Bridge motor drivers (L9110s, via GPIO 5, 16,17,18 ), and a DC-DC (4.5V ~17v to 5V) power regulator (for powering up the ESP board via USB, allowing to charge Li-Po and the ESP32 MCU). Attaching this shield onto a Lolin32, actuations that demand high current (max. 800mA for each bridge), for example, driving two DC motors, and detections of angles, acceleration can be easily made possible.
Components
- Dual L9110s (800 mA) DACs
- MPU6050 Accelerometer and Gyroscope
- TPS563201 Voltage regulator (4.5v to 17v input, 3A output)
- FSR (force sensitive resistor) connector (A2 section)
To-do
- Include support for ESP32 minikit
- Incoporate daisy chain support for ESP boards (e.g. TTGO T-Base) that come with an i2c connector (consisting of
SDA/SCL/3.3/GND) - Add ESPBoost-Input, configured with 3-axis gyro/accelerometer (MPU6050), 12-pin capacitive sensor (MPR121q), FSR pull-down resistors
- Add ESPBoost-Actuation, consisting of 2 sets of
TB6612FNG - Add ESPBoost-Power, supporting battery charging, regulating voltage from 3.7V to 5V, 9V, 12V
Pinout
Sample
If you’re interested in the field of Internet of Tangible Things, this shield may help. For sample inquiry, please drop me an email hi@pxing.design
